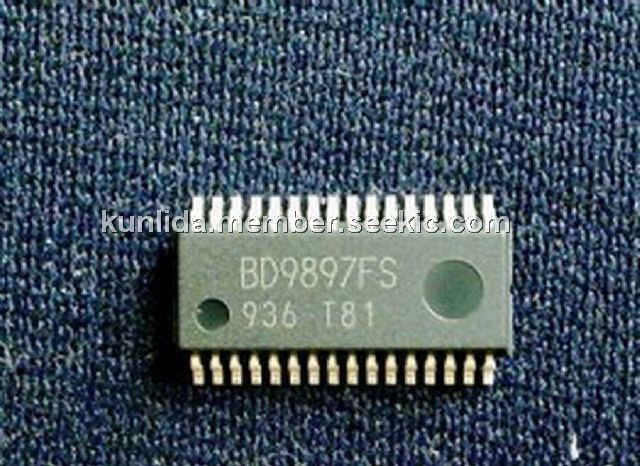

BD9897FS

DC-AC Inverter Control IC, built-in thermal shutdown circuit

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~2.00

PartNumber:: BD9897FS

Brand:: Rohm - Rohm | Pack: SSOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Tony Tsai's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-08

From Other Seller

Part Number:BD9897FS
US $1.50 - 2.00
MJ16018

US $1.80 - 2.50 / Piece
(0) Remove
TDA7360

US $0.80 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

BD9897FS is a DC-AC Inverter Control IC. BD9897FS incorporate a built-in thermal shutdown circuit (TSD circuit). The thermal shutdown circuit (TSD circuit) is designed only to shut the IC off to prevent runaway thermal operation. It is not designed to protect the IC or guarantee its operation of the thermal shutdown circuit is assumed. The circuit unctionality is guaranteed within of ambient temperature operation range as long as it is within recommended operating range. The standard electrical characteristic values cannot be guaranteed at other voltages in the operating ranges, however the variation will be small.

Parametrics

Absolute Maximum Ratings: (1)Supply Voltage, VCC: 36 V; (2)BST pin, BST: 40 V; (3)SW pin, SW: 36 V; (4)BST-SW voltage difference, BST-SW 7 V; (5)Operating Temperature Range, Topr -40～+85 ℃; (6)Storage Temperature Range, Tstg -55～+150 ℃; (7)Maximum Junction Temperature, Tjmax +150 ℃; (8)Power Dissipation, Pd 950* mW.

Features

Features: (1)36V High voltage process; (2)1ch control with Full-Bridge; (3)Lamp current and voltage sense feed back control; (4)Sequencing easily achieved with Soft Start Control; (5)Short circuit protection with Timer Latch; (6)Under Voltage Lock Out; (7)Mode-selectable the operating or stand-by mode by stand-by pin; (8)Synchronous operating the other BD9897FS IC’s; (9)BURST mode controlled by PWM and DC input; (10)Output liner Control by external DC voltage.
