Product Summary

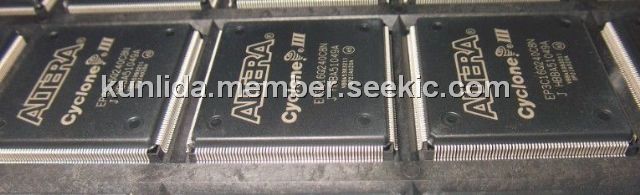

The EP3C16Q240C8N is a cost-optimized, memory-rich FPGA. It is built on Taiwan Semiconductor Manufacturing Company (TSMC)’s 65-nm low-power (LP) process technology with additional silicon optimizations and software features to minimize power consumption. The EP3C16Q240C8N offers low-power consumption and increased system integration at reduced cost.
Parametrics
EP3C16Q240C8N absolute maximum ratings: (1)VCCINT, Supply voltage for internal logic: –0.5 to 1.8 V; (2)VCCIO, Supply voltage for output buffers: –0.5 to 3.9 V; (3)VCCA, Supply (analog) voltage for PLL regulator: –0.5 to 3.75 V; (4)VCCD_PLL, Supply (digital) voltage for PLL: –0.5 to 1.8 V; (5)VCCBAT, Battery back-up power supply for design security volatile key register: –0.5 to 3.75 V; (6)VI, DC input voltage: –0.5 to 3.95 V.
Features
EP3C16Q240C8N features: (1)Extended battery life for portable and handheld applications; (2)Enabled operation in thermally challenged environments; (3)Eliminated or reduced cooling system costs; (4)High memory-to-logic ratio for computation intensive applications; (5)Highest multiplier-to-logic ratio in the industry at every density; 340 MHz ; (6)multiplier performance; (7)High I/O count, low- and mid-range density devices for user I/O constrained applications; (8)Up to four phase-locked loops (PLLs) provide robust clock management and synthesis for device clocks, external system clocks, and I/O interfaces.

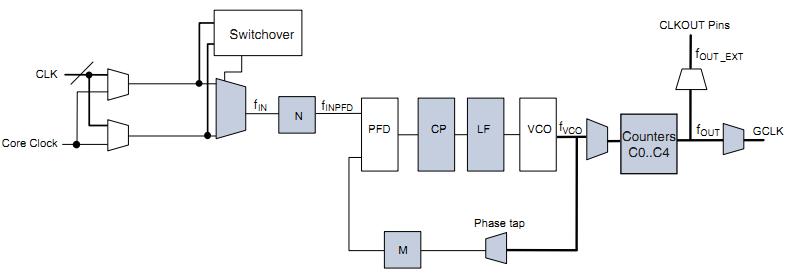

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP3C16Q240C8N |
|
IC CYCLONE III FPGA 16K 240PQFP |
Data Sheet |
|
|
||||||
