Product Summary

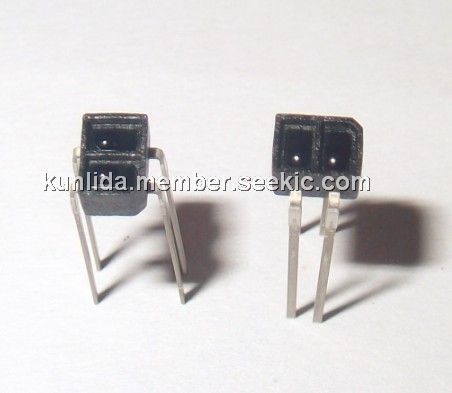

The GP2S40 is a Long Focal Distance, Subminiature Photointerrupter. It is ideal for Copiers, Facsimiles, Printers.
Parametrics
GP2S40 absolute maximum ratings: (1)Forward current:50 mA; (2)Reverse voltage:6V; (3)Power dissipation:75 mW; (4)Collector-emitter voltage:35 V; (5)Emitter-collector voltage:6V; (6)Collector current:20 mA; (7)Storage temperature Tstg - 40 to + 100℃; (8)Soldering temperature: 260℃; (9)Collector power dissipation PC 75 mW; (10)Operating temperature:-25 to 85℃; (11)Total power dissipation:100mW.
Features
GP2S40 features: (1)Ultra compact DIP package(Volume: 1/3 of GP2S05); (2)Long focal distance type(focal distance: 3mm ); (3)Effective detection distance: 1.5 to 6.5mm.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 GP2S40 |
|
PHOTOINTERRUPTER REFLEC 6.5MM PC |
Data Sheet |
Negotiable |
|
||||
 |
GP2S40J0000F |
Sharp Microelectronics |
Optical Switches, Reflective, with Phototransistor Output Photointerrupter 3.0mm |
Data Sheet |
Negotiable |
|
||||
|
GP2S40JJ000F |
Sharp Microelectronics |
Optical Switches, Reflective, with Phototransistor Output Collector Current Sort 1.0-3.0 Ma |
Data Sheet |
Negotiable |
|
||||
