IXDN409PI

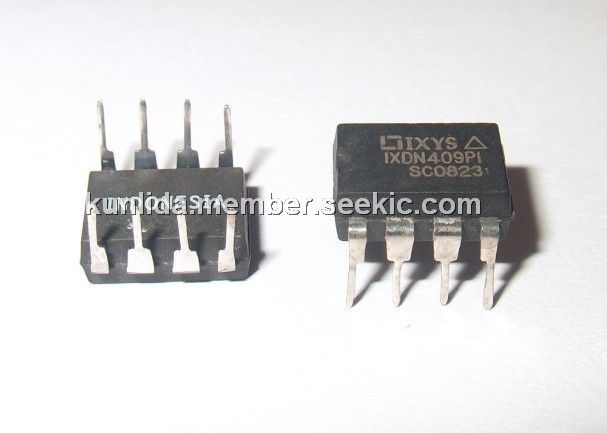

high speed, high current gate driver, DIP8, 975mW, Latch Up Protected, High Peak Output Current

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.43~1.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.43~1.60

PartNumber:: IXDN409PI

Brand:: IXYS Corporation - ixys | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Tony Tsai's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-09

From Other Seller

Part Number:IXDN409PI
US $1.43 - 1.60
LM285M-2.5

US $0.16 - 0.25 / Piece
(0) Remove
STRG6653

US $1.20 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IXDN409PI is a high speed high current gate driver specifically designed to drive the largest MOSFETs and IGBTs to their minimum switching time and maximum practical frequency limits. The IXDN409PI can source and sink 9A of peak current while producing voltage rise and fall times of less than 30ns. The input of the IXDN409PI is compatible with TTL or CMOS and is fully immune to latch up over the entire operating range. Designed with small internal delays, cross conduction/current shoot-through is virtually eliminated in the IXDN409PI. The applications of the IXDN409PI include Driving MOSFETs and IGBTs, Motor Controls, Line Drivers, Pulse Generators, Local Power ON/OFF Switch, Switch Mode Power Supplies (SMPS), DC to DC Converters, Pulse Transformer Driver, Limiting di/dt under Short Circuit and Class D Switching Amplifiers.

Parametrics

IXDN409PI absolute maximum ratings: (1)Supply Voltage: 25 V; (2)All Other Pins: -0.3 V to VCC + 0.3 V; (3)Power Dissipation, TAMBIENT ≤25℃: 975mW; (4)Derating Factors (to Ambient): 7.6mW/℃; (5)Storage Temperature: -65 to 150℃; (6)Lead Temperature (10 sec): 300℃.

Features

IXDN409PI features: (1)Built using the advantages and compatibility of CMOS and IXYS HDMOSTM processes; (2)Latch Up Protected; (3)High Peak Output Current: 9A Peak; (4)Operates from 4.5V to 25V; (5)Ability to Disable Output under Faults; (6)High Capacitive Load Drive Capability: 2500pF in <15ns; (7)Matched Rise And Fall Times; (8)Low Propagation Delay Time; (9)Low Output Impedance; (10)Low Supply Current.
