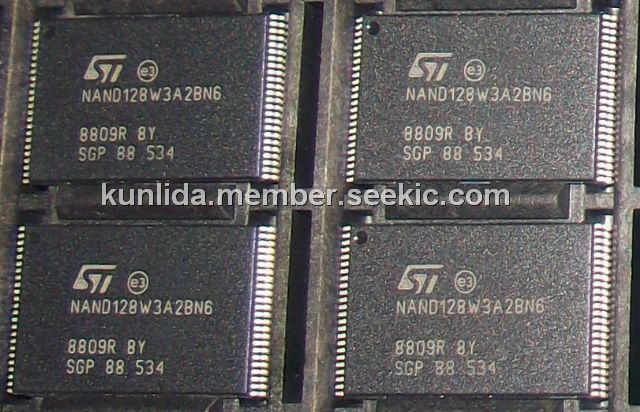

NAND128W3A2BN6E

non-volatile Flash memory, TSOP48, –0.6 to 2.7 V, high density, copy back program mode

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.60~1.75 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.60~1.75

PartNumber:: NAND128W3A2BN6E

Brand:: STMicroelectronics - ST | Pack: TSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Tony Tsai's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-09

From Other Seller

Part Number:NAND128W3A2BN6E
US $1.60 - 1.75
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

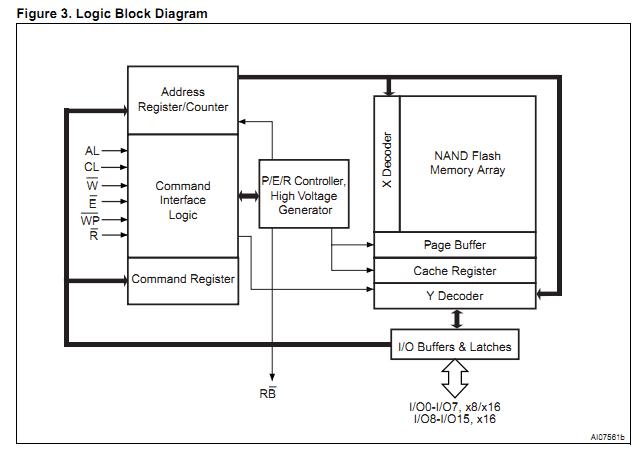

The NAND128W3A2BN6E is a non-volatile Flash memory that uses NAND cell technology. The NAND128W3A2BN6E ranges from 128Mbits to 1Gbit and operate with either a 1.8V or 3V voltage supply. The size of a Page is either 528 Bytes (512 + 16 spare) or 264 Words (256 + 8 spare) depending on whether the NAND128W3A2BN6E has a x8 or x16 bus width. The address lines are multiplexed with the Data In- put/Output signals on a multiplexed x8 or x16 In-put/Output bus. This interface reduces the pin count and makes it possible to migrate to other densities without changing the footprint.

Parametrics

NAND128W3A2BN6E absolute maximum ratings: (1)TBIAS, Temperature Under Bias: –50 to 125℃; (2)TSTG, Storage Temperature: –65 to 150℃; (3)VIO, Input or Output Voltage, 1.8V devices: –0.6 to 2.7 V; 3 V devices: –0.6 to 4.6 V; (4)VDD, Supply Voltage, 1.8V devices: –0.6 to 2.7 V; 3 V devices: –0.6 to 4.6 V.

Features

NAND128W3A2BN6E features: (1)high density nand flash memories: Up to 1 Gbit memory array; Up to 32 Mbit spare area; Cost effective solutions for mass storage applications; (2)NAND interface: x8 or x16 bus width; Multiplexed Address/ Data; Pinout compatibility for all densities; (3)supply voltage, 1.8V device: VDD = 1.7 to 1.95V; 3.0V device: VDD = 2.7 to 3.6V; (4)page size, x8 device: (512 + 16 spare) Bytes; x16 device: (256 + 8 spare) Words; (5)block size, x8 device: (16K + 512 spare) Bytes; x16 device: (8K + 256 spare) Words; (6)page read / program, Random access: 12μs (max); Sequential access: 50ns (min); Page program time: 200μs (typ); (7)copy back program mode: Fast page copy without external buffering; (8)fast block erase, Block erase time: 2ms (Typ).
