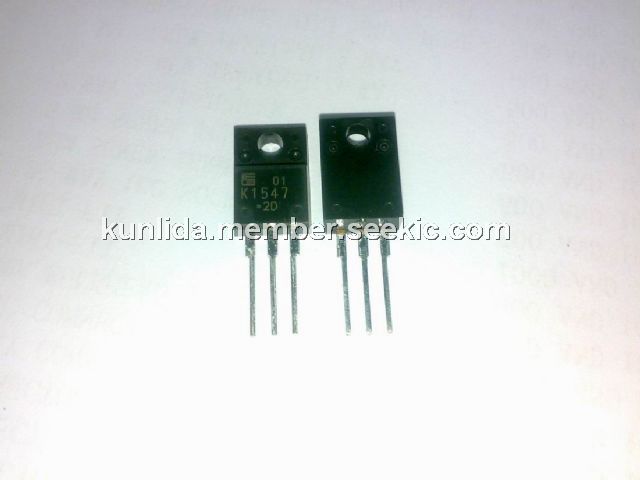

2SK1547 is a FUJI power MOS-FET which belongs to F-II Series. With 800V drain source voltage, the max power dissipation is 40W. The thermal resistance is 62.5 °C/W at the condition of channel to case, but 3,125°C/W when the condition is channel to air. It is widely applied in switching regulators, UPS, DC-DC converters and some other general purpose power amplifier.
Parametrics
Absolute Maximum Ratings: (1)Drain-Source-Voltage, Vds: 800 V; (2)Continous Drain Current, Id: 4 A; (3)Pulsed Drain Current, Id(puls): 10 A; (4)continuous reverse drain current, Ipr: 4A; (5)Gate source peak voltage, Vgss: +/_30v; (7)Max. Power Dissipation, Pd: 80 W; (8)Operating and Storage Temperature Range, Tch: 150 °C; (9)Operating and Storage Temperature Range, Tstg: -55 ~ +150 °C.
Features
Features:(1)High Speed Switching; (2)Low On-Resistance; (3)No Secondary Breakdown; (4)Low Driving Power; (5)High Voltage; (6)VGS = ± 30V Guarantee; (7)Avalanche-proof.
