Product Summary
The BD9897 is a DC-AC Inverter Control IC.
Parametrics
BD9897 absolute maximum ratings: (1)Supply Voltage, VCC: 36V; (2)BST pin, BST: 40V; (3)SW pin, SW: 36V; (4)BST-SW voltage difference, BST-SW: 7V; (5)Operating Temperature Range,Topr: -40～+85℃; (6)Storage Temperature Range, Tstg: -55～+150℃; (7)Maximum Junction Temperature,Tjmax: +150℃; (8)Power Dissipation, Pd: 950mW.
Features
BD9897 features: (1)36V High voltage process; (2)1ch control with Full-Bridge; (3)Lamp current and voltage sense feed back control; (4)Sequencing easily achieved with Soft Start Control; (5)Short circuit protection with Timer Latch; (6)Under Voltage Lock Out; (7)Mode-selectable the operating or stand-by mode by stand-by pin; (8)Synchronous operating the other BD9897FS IC’s; (9)BURST mode controlled by PWM and DC input; (10)Output liner Control by external DC voltage.

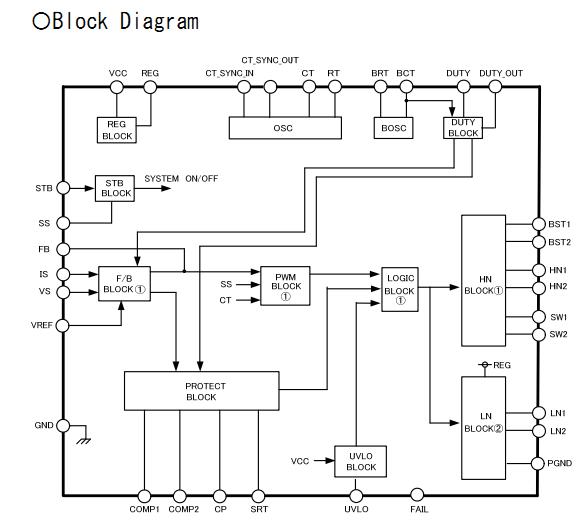

Diagrams
