Product Summary

The L7808CV is a three-terminal positive regulator which is available in TO-220, TO-220FP,TO-220FM, TO-3 and D2PAK packages. The several fixed output voltages make it useful in awide range of applications. It can provide local on-card regulation, eliminating the distribution problems associated with single point regulation.

Parametrics

L7808CV absolute maximum ratings: (1)DC Input Voltage for VO= 5 to 18V: 35V; (2)DC Input Voltage for V for VO= 20,24V: 40V; (3)Power dissipation: Internally Limited; (4)Output current: Internally Limited; (5)Storage Temperature Range: -65 to 150℃; (6)Operating Junction TemperatureRange: 0 to 150℃.

Features

L7808CV features: (1)Output current to 1.5A; (2)Output voltages of 5, 5.2, 6, 8, 8.5, 9, 10, 12, 15, 18, 24V; (3)Thermal overload protection; (4)Short circuit protection; (5)Output transition protection.

Diagrams

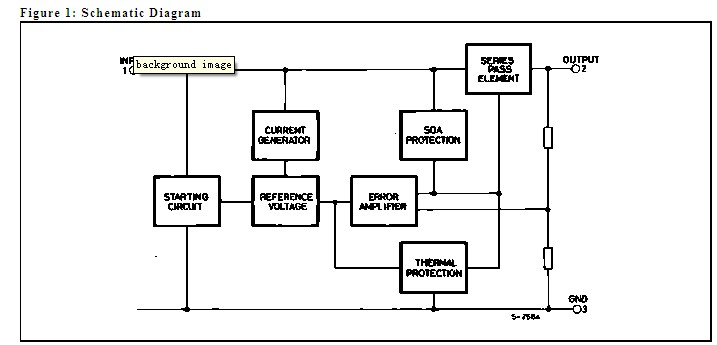

L7808CV schematic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

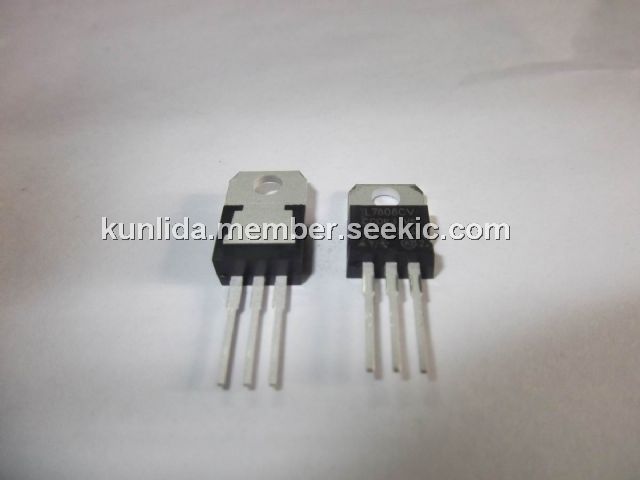

L7808CV
L7808CV
STMicroelectronics
Linear Regulators - Standard 8.0V 1.0A Positive
Data Sheet
0-1: $0.40
1-10: $0.34
10-100: $0.26
100-250: $0.22
