Product Summary

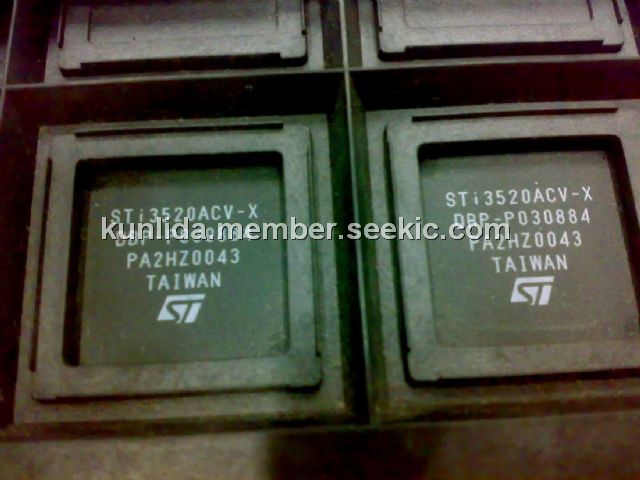

The STI3520ACV-X contains an MPEG-2 video decoder, an MPEG audio decoder and a PLL. The STI3520ACV-X requires minimum support from an eatermal micro-controller, which is mainly required to control the video decoder at the start of every picture. The video decoder is a real-time video compression processor supporting the MPEG-1 and MPEG-2 standard at video rates up to 720 ×480× 60 HZ or 720× 576× 50HZ. The STI3520ACV-X is used in DBS and DVB receivers,digital TV receiver and digital cable TV receiver.

Features

Features:(1)single chip implementing the MPEG decoding functions of the STI3500A video decoder and the STI4500 audio decoder; (2)on-chip PLL allowing full circuit operation with only one external clock; (3)accepts MPEG audio,video and program streams; (4)video decoder fully supports MPEG-2 main profile/main level; (5)MPEG-2 main profile ccir601 decoding in 16 mbits DRAM; (6)MPEG-2 simple profile decoding in 8mbits DRAM; (7)automatic error concealment; (8)on-screen display generator:16 colors/region,6-bit luma resolution; (9)audio decoder supports layers 1 and 2 od MPEG; (10)all popular audio output PCM formats supported; (11)integrated audio bit-buffer; (12)support for synchronous and hy-per-page mode DRAMS; (13)pal decoding with OSD with 16 mbits DRAM. Full screen,16 color OSD in 20 mbits using 5 × 4mbits standard DRAMS; (14)standard 8-bit interface for micro-controller and compressed data input; (15)3.3v power supply,i/os 5v compatible, 0.5um CMOS technology.
