Product Summary
The TC7SH126FS is a 2-input or gate.
Parametrics
TC7SH126FS absolute maximum ratings: (1)Supply voltage range:-0.5 to 7.0 V ; (2)DC input voltage:-0.5 to 7.0 V ; (3)DC output voltage:-0.5 to VCC + 0.5V ; (4)Input diode current:-20 mA ; (5)Output diode current:±20 mA ; (6)DC output current:±25 mA ; (7)DC VCC/ground current:±50mA ; (8)Power dissipation:50mW ; (9)Storage temperature:-65 to 150 °C.
Features
TC7SH126FS features: (1)High speed: tpd = 3.8 ns (typ.) at VCC = 5 V ; (2)Low power dissipation: ICC = 2 μA (max) at Ta = 25°C ; (3)High noise immunity: VNIH = VNIL = 28% VCC (min) ; (4)5.5V tolerant input. ; (5)Wide operating voltage range: VCC (opr) = 2~5.5 V.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

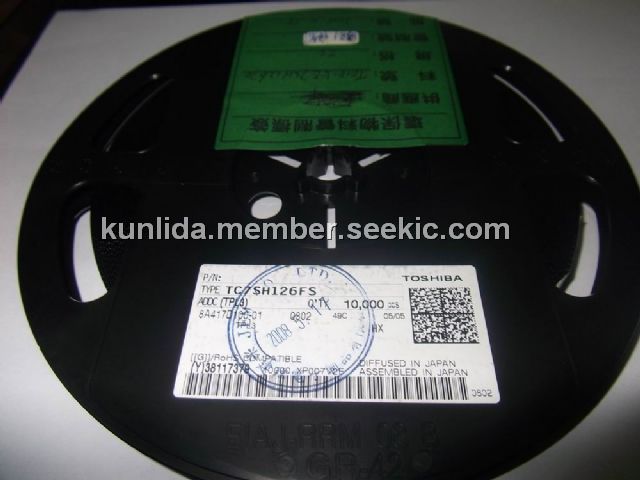

 TC7SH126FS |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
TC7SH126FSTPL3 |
Toshiba |
Buffers & Line Drivers L-MOS 3-State Buffer x 1 |
Data Sheet |
|
|
||||||||
