AR1010

single chip FM radio receiver IC, QFN24, –0.3V to 5.5V, +10 dBm, 76~108MHz, Highest integration level

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~0.40

PartNumber:: AR1010

Brand:: Airoha Technology Corp. - Airoha | Pack: QFN | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Tony Tsai's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-09

From Other Seller

Part Number:AR1010
US $0.30 - 0.40
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

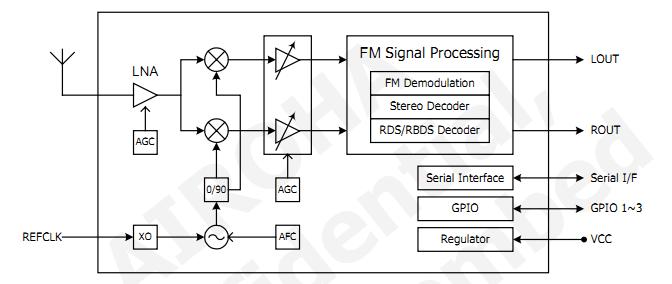

The AR1010 is a single chip FM radio receiver IC, which supports full Europe/US/Japan bands. The AR1010 integrates on-chip LNA, Mixer, VGA, XO, FM signal processing unit, serial digital I/O interfaces and regulator. The highest integration level minimizes external BOM cost and provides optimum sound quality. A RDS/RBDS decoder is also included in AR1010 to provide broadcasted data.

Parametrics

AR1010 absolute maximum ratings: (1)Power supply voltage (VDDD, VANA): –0.3V to 5.5V; (2)IO port supply voltage (VCCIO): HOST_IO_VCC–0.3V to HOST_IO_VCC + 0.3V; (3)Pin voltage: – 0.3V to HOST_IO_VCC + 0.3V; (4)Maximum power dissipation: 1W; (5)Operating temperature: –40 to +85℃; (6)Storage temperature: –65 to +150℃; (7)LNA input level: +10 dBm.

Features

AR1010 features: (1)Worldwide FM band support: 76~108MHz; (2)Highest integration level with minimized external BOM cost; (3)Frequency synthesizer with integrated VCO and Automatic Frequency Control (AFC); (4)Integrated XO with external reference clock input or external 32.768KHz crystal; (5)Automatic Gain Control (AGC) on LNA/VGA amplifiers; (6)Signal strength measurement; (7)Programmable de-emphasis time constant (50/75us); (8)Adaptive noise suppression; (9)Analog output with volume control and Line-level outputs; (10)Serial control interface for 2-wire and 3-wire modes; (11)Support both RDS & RBDS; (12)Embedded Seek tuning function; (13)Integrated LDO regulators support 2.7 to 5.5 V supply voltage; (14)QFN 4x4x0.6mm 24-pin package.
