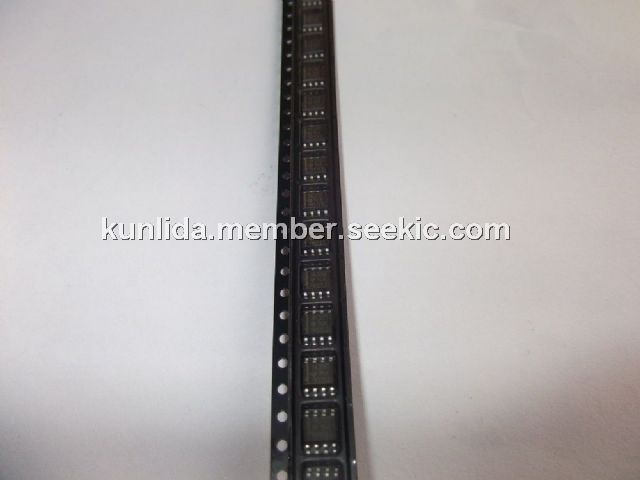

NE555D

Single Precision Timer, SOP-8, monolithic timing circuit, 200 mA, 500 kHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.06~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.06~0.10

PartNumber:: NE555D

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Tony Tsai's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-02

From Other Seller

Part Number:NE555D
US $0.06 - 0.10
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

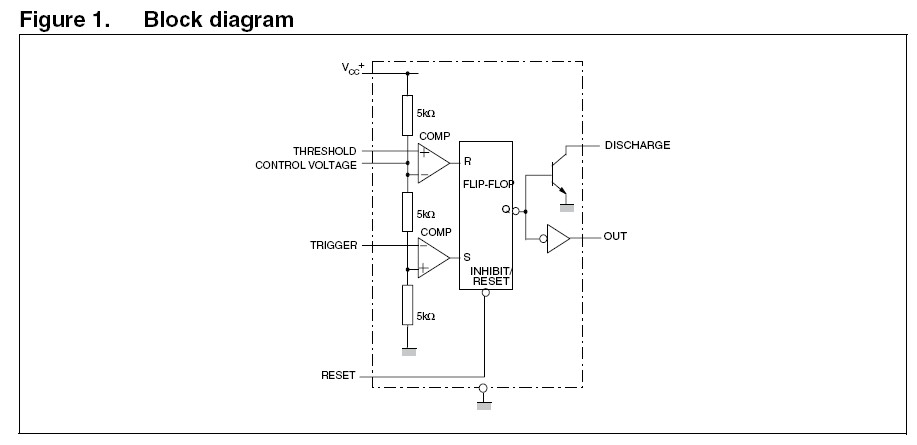

The NE555D is a single precsion time with monolithic timing circuit which is are highly stable controllers capable of producing accurate time delays or oscillation. In the time delay mode of operation, the time is precisely controlled by one external resistor and capacitor. For a stable operation as an oscillator, the free running frequency and the duty cycle are both accurately controlled with two external resistors and one capacitor. The NE555D circuit may be triggered and reset on falling waveforms, and the output structure can source or sink up to 200 mA. It can be used in precision Timing, pulse generation, time delay generation and sequential timing.

Parametrics

NE555D absolute maximum ratings: (1)Supply voltage：18 V; (2)Output current (sink & source)：±225 mA; (3)Thermal resistance junction to ambient(1)：DIP8，85℃/W;SO-8,125; (4)℃/W; (5)Thermal resistance junction to case(1): DIP8, 41℃/W; SO-8, 40℃/W; (6)Human body model (HBM)(2): 1000 V; (7)Machine model (MM): 100 V; (8)Charged device model (CDM)(4): 1500 V; (9)Latch-up immunity: 200 mA; (10)Lead temperature (soldering 10 seconds): 260 ℃; (11)Junction temperature: 150℃; (12)Storage temperature range: -65 to 150 ℃.

Features

NE555D featurtes: (1)Low turn-off time; (2)Maximum operating frequency greater than 500 kHz; (3)Timing from microseconds to hours; (4)Operates in both astable and monostable modes; (5)Output can source or sink up to 200 mA; (6)Adjustable duty cycle; (7)TTL compatible; (8)Temperature stability of 0.005% per℃.
